TV2 Preconfigured Systems
Reliable cleanroom monitoring systems designed for accurate environmental monitoring and easy installation.
TV2 Cleanroom Monitors
Advanced monitoring solutions for cleanroom environments

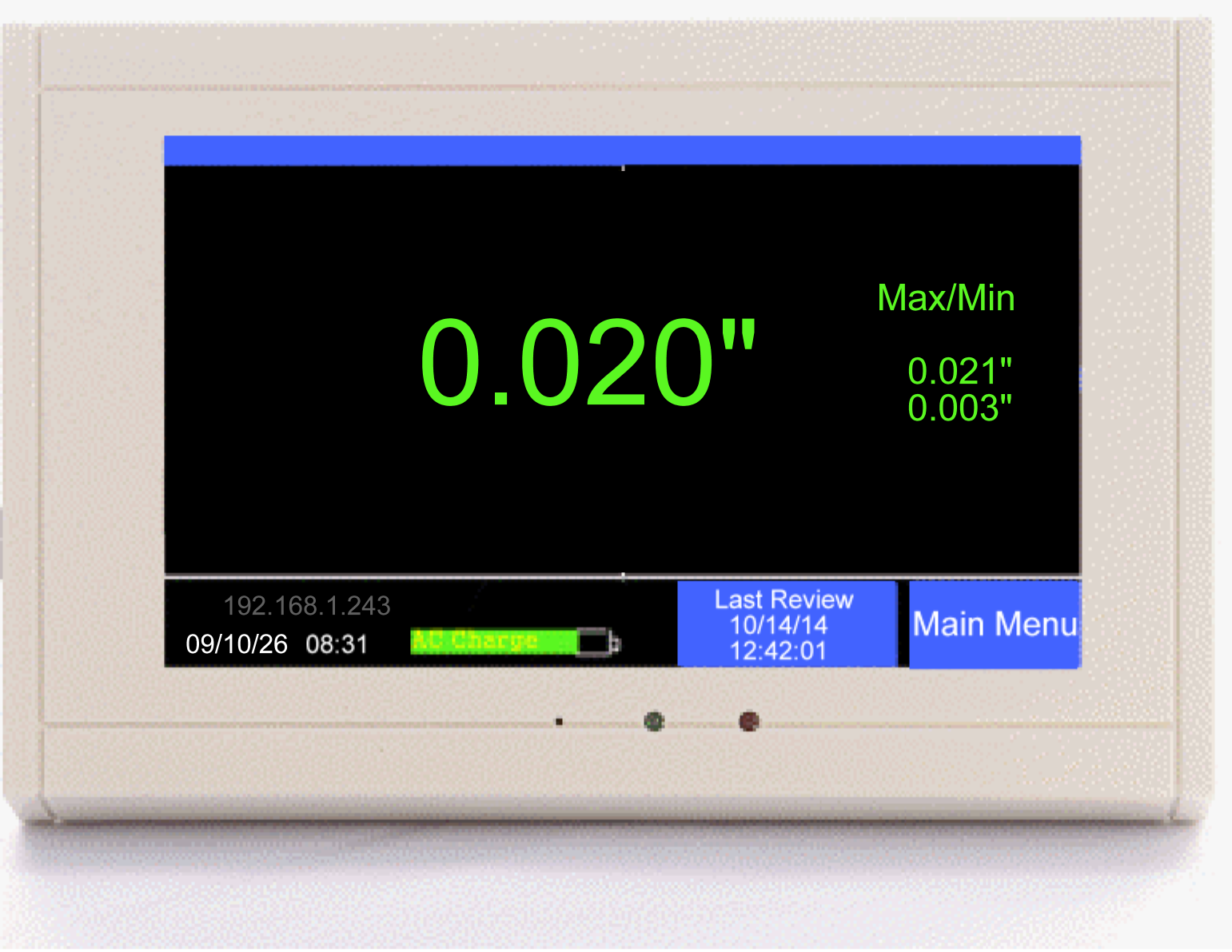

TV2 Cleanroom Monitor
TV2 Quick Check monitor with one differential pressure sensor.
Includes:
- Sockets for 4 wired sensors;
- PC interface software;
- Email alert software;
- Normally open relay;
- NIST-traceable calibration cert;
- 2 flush mount passive ports;
- Power out alarm;
- 100-hour battery backup;
- Power supply with 6' USB cable;
- Three additional sensors can be added

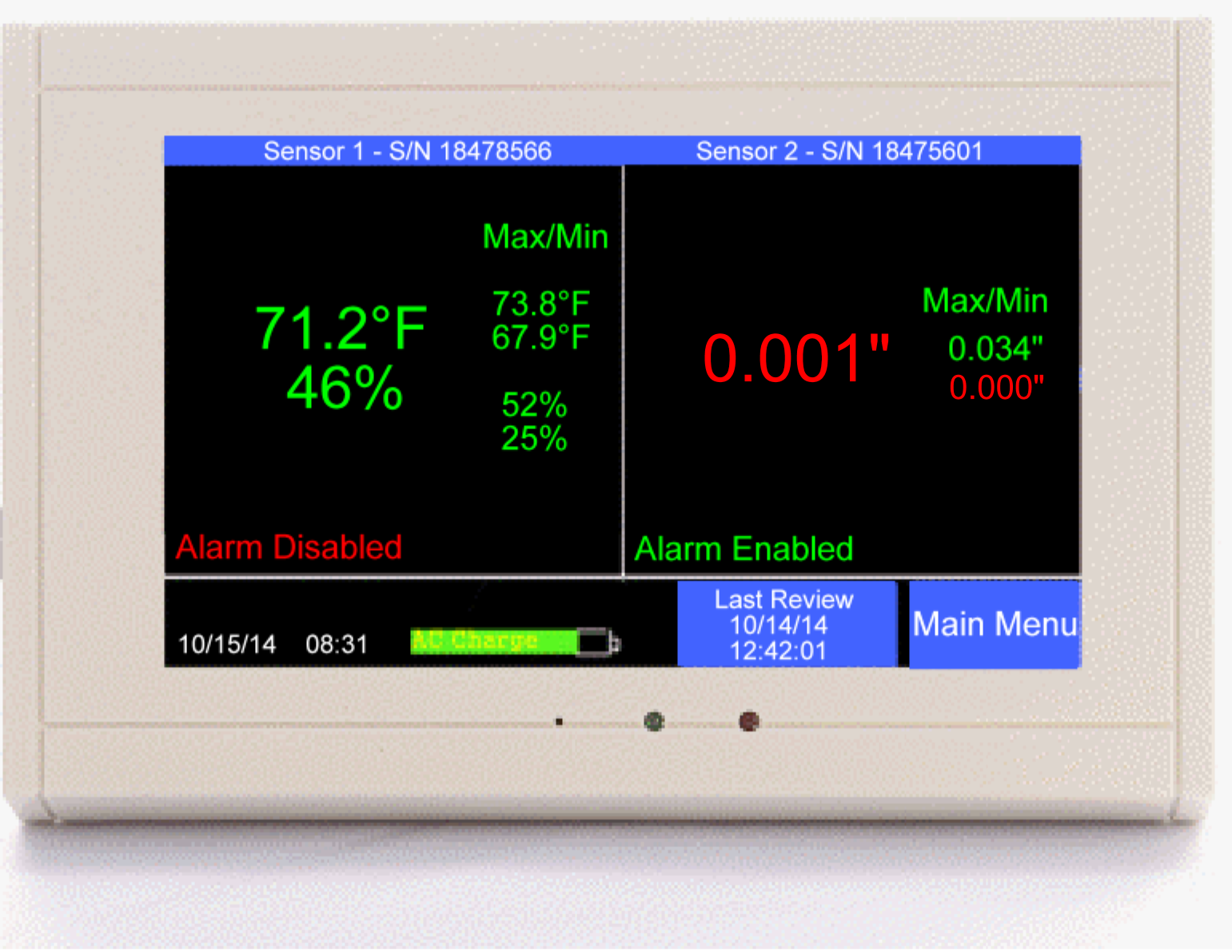

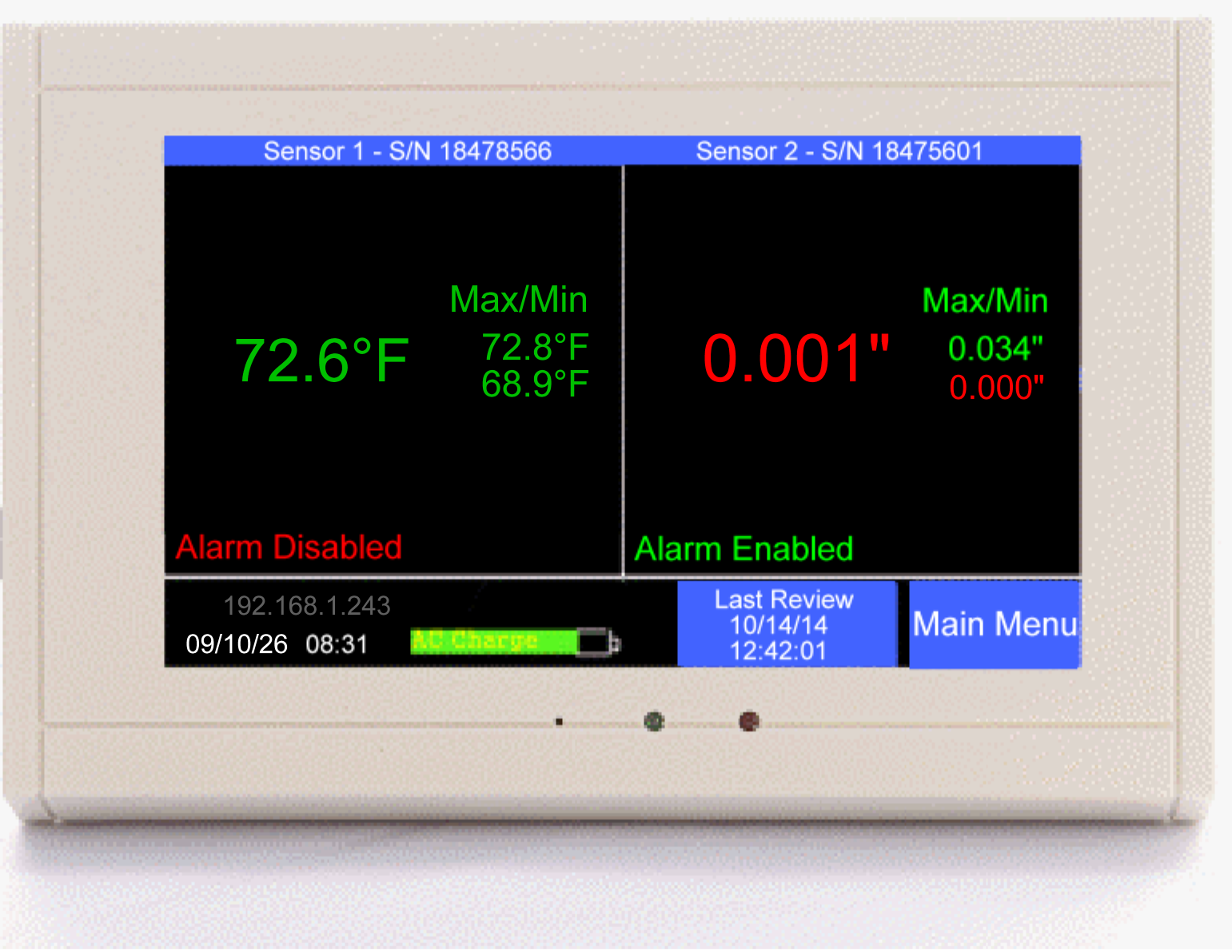

TV2 Cleanroom Monitor
TV2 Quick Check monitor with one differential pressure sensor and one temperature sensor.
Includes:
- Sockets for 4 wired sensors;
- PC interface software;
- Email alert software;
- Normally open relay;
- NIST-traceable calibration cert;
- 2 flush mount passive ports;
- Power out alarm;
- 100-hour battery backup;
- Power supply with 6' USB cable;
- Two additional sensors can be added
TV2 Cleanroom Monitor
TV2 Quick Check monitor with one differential pressure sensor and one temperature/humidity sensor.
Includes:
- Sockets for 4 wired sensors
- PC interface software
- Email alert software
- Normally open relay
- Power out alarm
- 100-hour battery backup
- NIST-traceable calibration certificate
- 2 flush mount passive ports
- Power supply with 6' USB cable

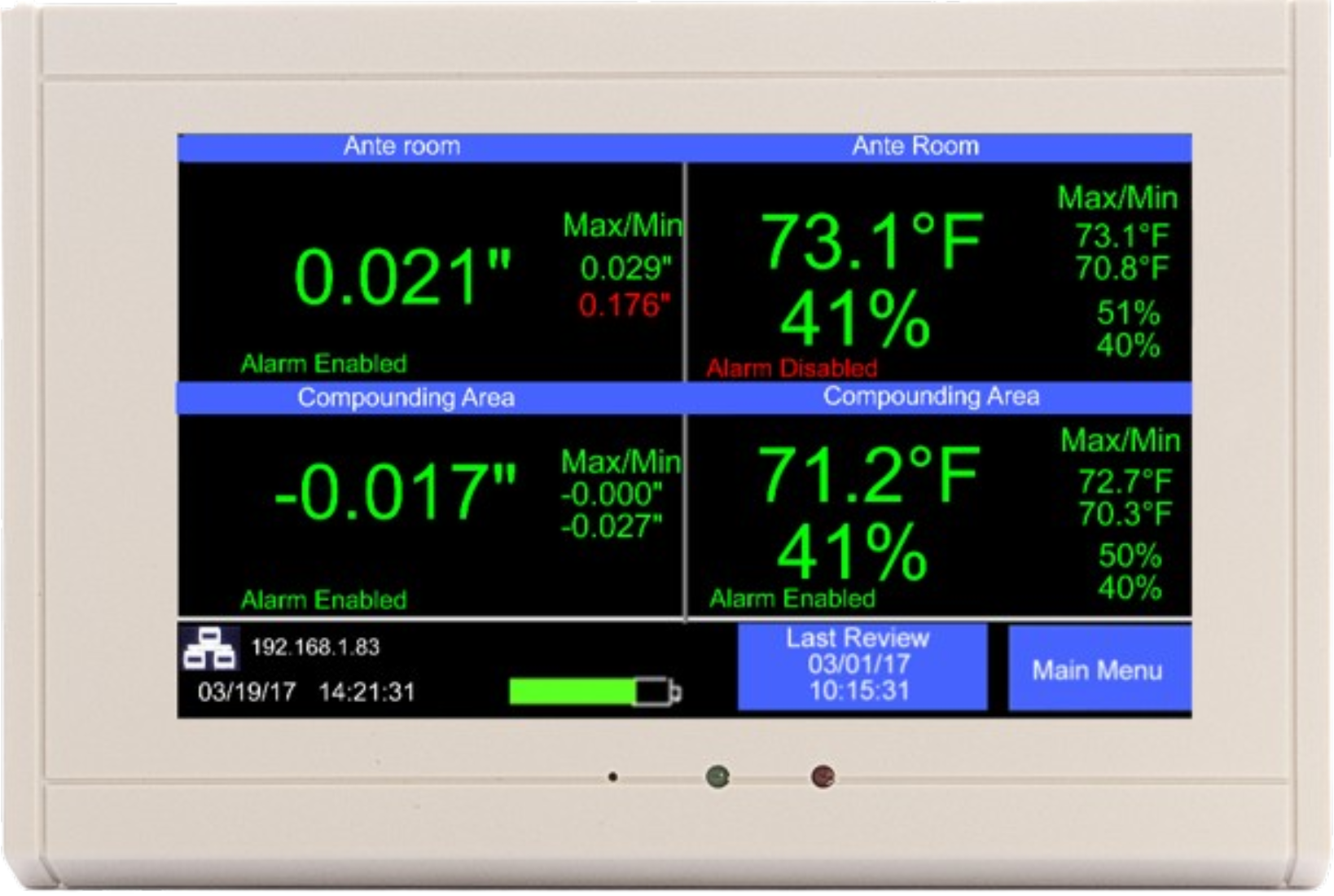

TV2 Cleanroom and Anteroom Monitor
TV2 Quick Check monitor with two differential pressure sensor and two temperature/humidity sensor.
Includes:
- Sockets for 4 wired sensors
- PC interface software
- Email alert software
- Normally open relay
- Power out alarm
- 100-hour power failure backup battery
- NIST-traceable calibration certificate
- 4 flush mount passive ports
- Power supply with 6' USB cable

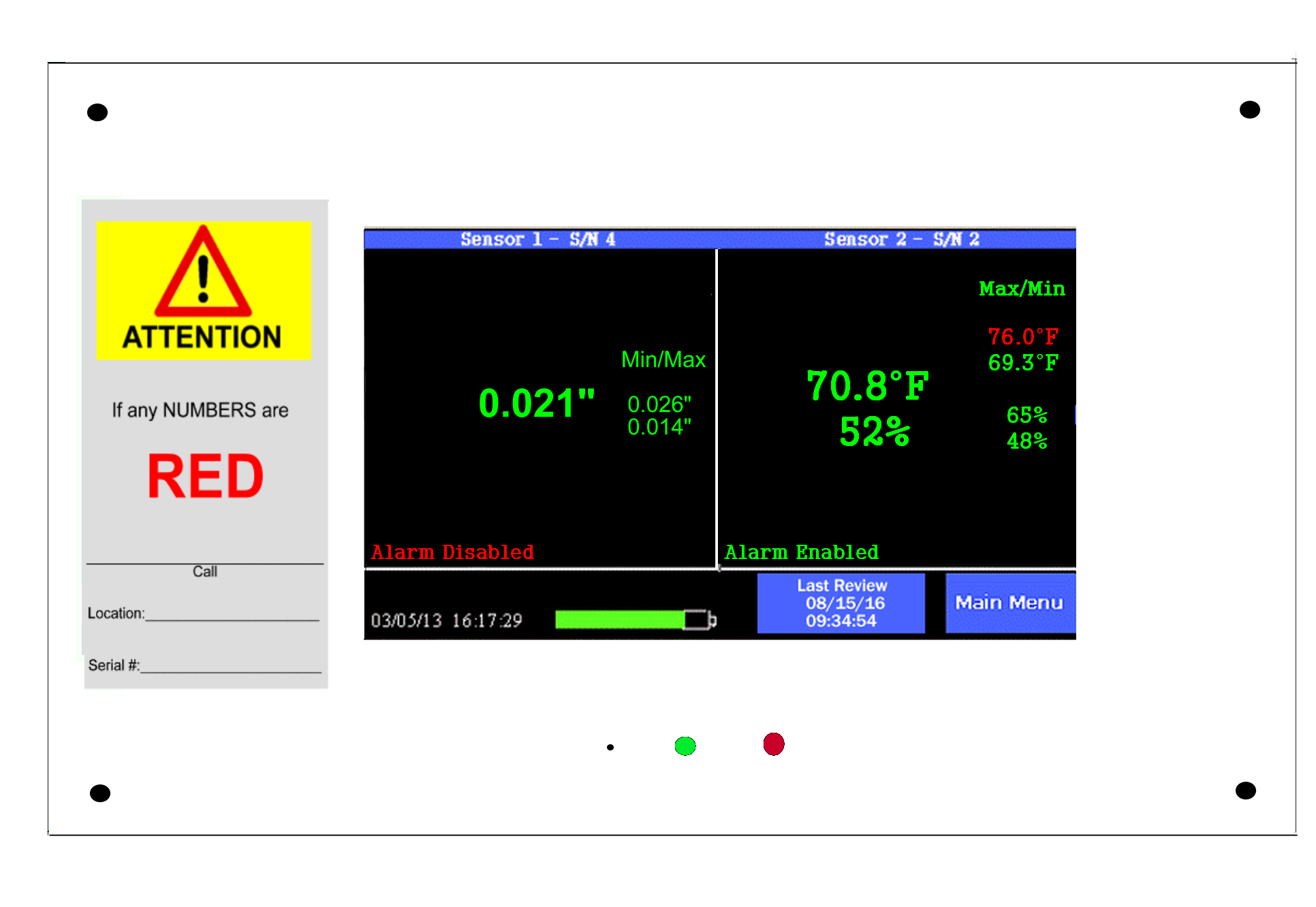

Panel Mount
Panel Mount (flush mount) option for TV2 wired or wireless monitor.
BACnet Interface
Optional BACnet interface for Building Automation Systems.

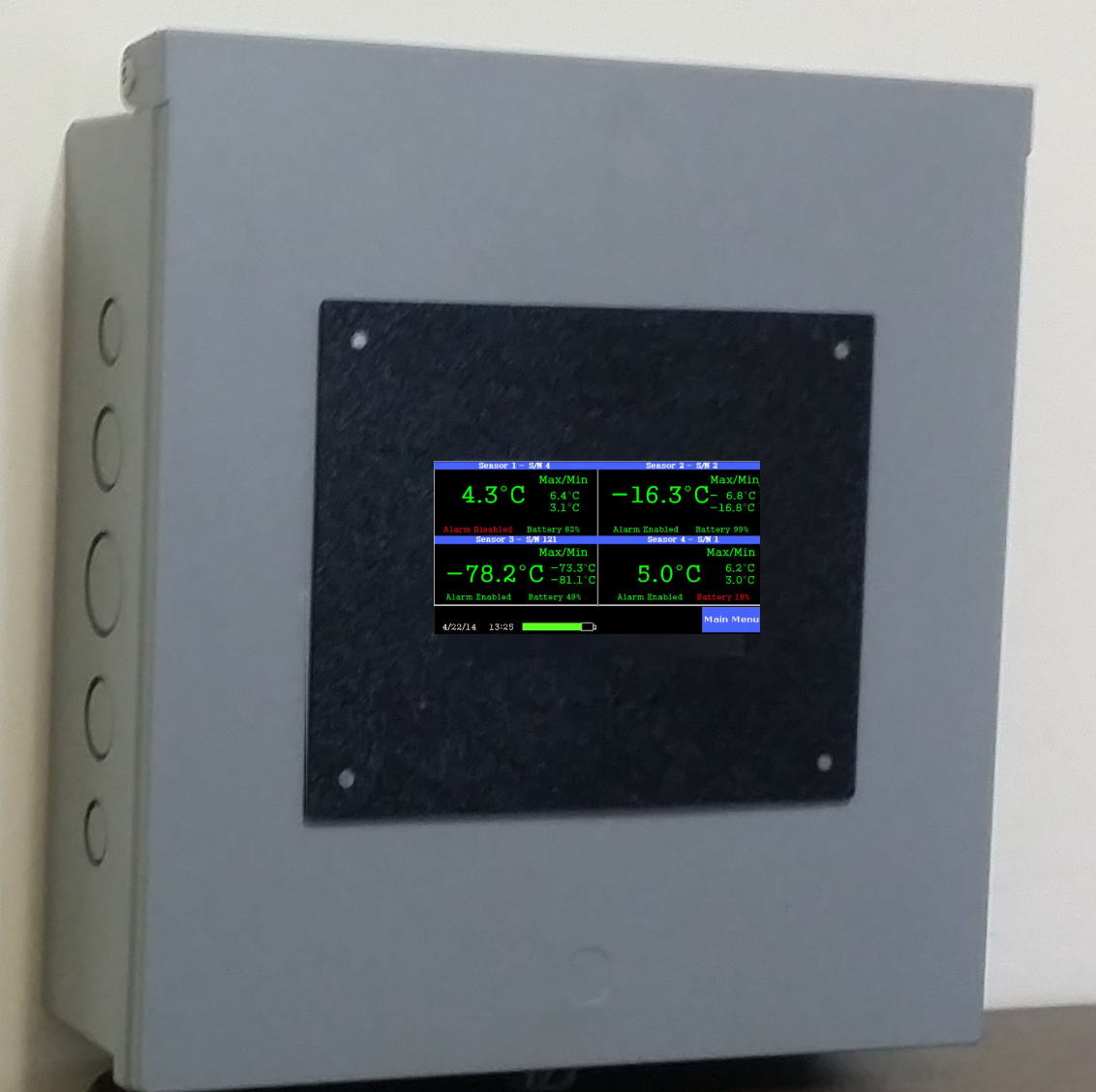

Heavy Duty Plastic Case
Heavy duty plastic case (1/8" thick), for mounting TV2 monitors. Measures 12" x 12" x 4" with knockout plugs for conduit & mounting on wall. Hinged cover for easy access. Conduit and collars not included.
Additional Wired Sensors
(Used with TV2-204 or TV2-2021DD1)Digital Temperature Sensor
Digital temperature sensor -40° to ~125°C (±0.5°C) for refrigerators or freezers. 3/8" diameter sensor with 20 foot wire. Immersable.
Temperature & Relative Humidity Sensor
Temperature & Relative Humidity sensor with
20 foot connecting wire.
Range -22°F to 170°F (±.5°F)
1% to 99% RH (±3%).

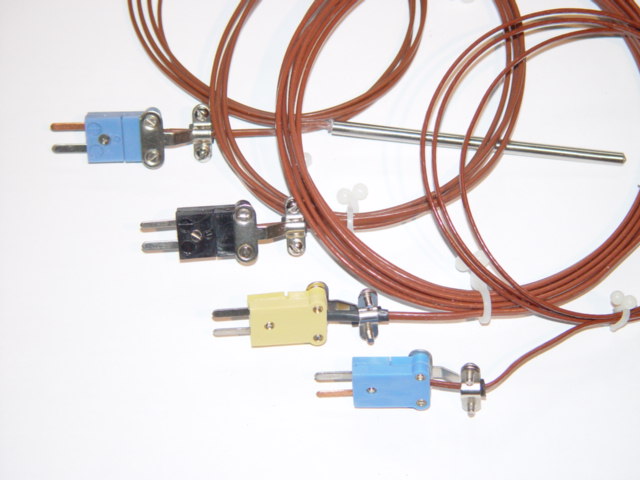

Extreme Temperature Sensor
Extreme temperature sensors. Specify type according to temperatures being monitored. All thermocouples have 20-foot wire.
Differential Pressure Sensor
Differential Pressure Sensor ±0.500.0"wc. (±.002" wc). Comes with twenty-foot connecting wire, two clear 12"plastic tubes, and two passive port wall plates.
Sensor Wire Extension
Fifty foot sensor wire extension for TV2 wired sensors. Four conductor M/F cable. Can be plugged together for longer runs. Also available as M/M to replace shorter sensor cables.
Additional Wireless Sensors
Used with TV2-201, TV2-201P, or TV2-201ip.
Temperature Sensor
Temperature sensor for refrigerators or freezers. 3/8" diameter sensor on 24" wire, which can be immersed in liquid. (-20 to 50°C, ±0.3°C)
High Accuracy Temperature & Humidity Sensor
High accuracy internal thermistor and humidity
sensor with transmitter. Range ~60 feet indoors.
(±0.3°C, ±3.0% RH)
(-20°C to 40°C, 0% to 100%rh)
T-Type Thermocouple
T type thermocouple for extreme temperatures (-200°C to 350°C). This sensor includes a transmitter and a T-type thermocouple on a 24" lead wire.

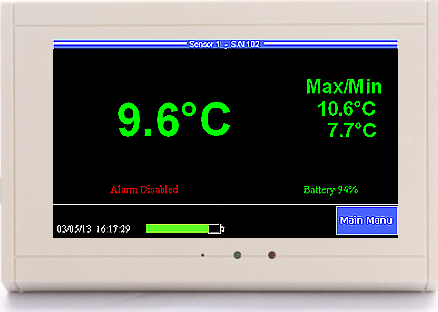

Accessories for ThermaViewer and TV2 products.
Compatible accessories are available for ThermaViewer and TV2 products.
ThermaViewers displays do not have sensors with them. Sensors must be ordered separately; the displays are shipped with PC software, 1 - 10' PC interface cable, US switching 120VAC power supply, battery backup, and user guide.
Visa, MasterCard, American Express, Wire Transfer, Prepaid, or Purchase order with approved credit.
FOB Crestwood, KY via UPS unless requested otherwise and quoted.
All products carry a one year limited warranty. A twelve month extended warranty may be purchased. All returned items without cause will incur a 20% restocking fee.
Secure Your Cleanroom Today
Get a custom quote for your facility's monitoring requirements, or see prices online. Our technicians are ready to assist with sensor configuration, installation, and ongoing support.
