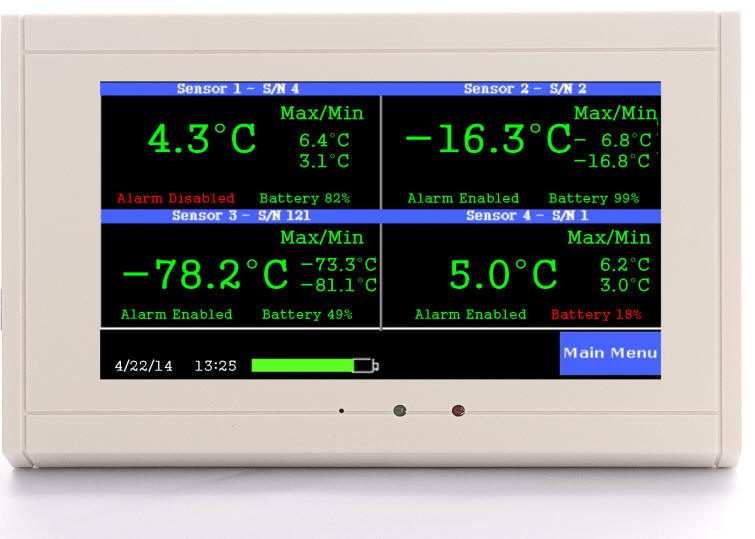

Everything in range
Four refrigerators and freezers on one screen, each with its max and min. All green, so nothing needs attention.
The TV2 QuickCheck Monitor
Green means safe. Red means go and look.
The TV2 puts temperature, humidity and differential pressure on a wall display anyone can read from across the room, logs every reading automatically, and raises the alarm the moment a limit is crossed.
Request a Quote See List PricingList prices published online. No account required. No monthly fees. No cloud. No server.
- No monthly fees.Buy the instrument once. TView software is included.
- Up to 4 sensorsTemperature, humidity and differential pressure on one display.
- 80,000 readings per sensorAbout 1.5 years at one reading every 10 minutes, held on the device.
- 100-hour backup batteryMonitoring, logging and alarms continue through an outage.
- Made in KentuckyDesigned and manufactured in Crestwood, USA.
QuickCheck Display
The whole idea, in two screens
QuickCheck exists so that checking the cold chain takes a glance rather than a login. Staff learn it in one sentence.

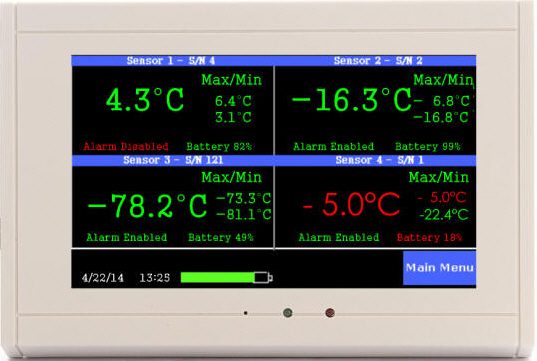

Sensor 4 out of range
The same screen minutes later. Freezer 4 has risen to -5.0°C, so its reading turns red, the buzzer sounds and the relay closes. Touch the number to see how long it has been that way.
Applications
Start with the room you need to protect
The same instrument sits behind all of these. The sensors and the alarm limits are what change.
Pharmacy and vaccine storage
Refrigerator, freezer and vaccine storage monitoring with local alarms and optional email alerts.
ExploreCleanroom monitoring

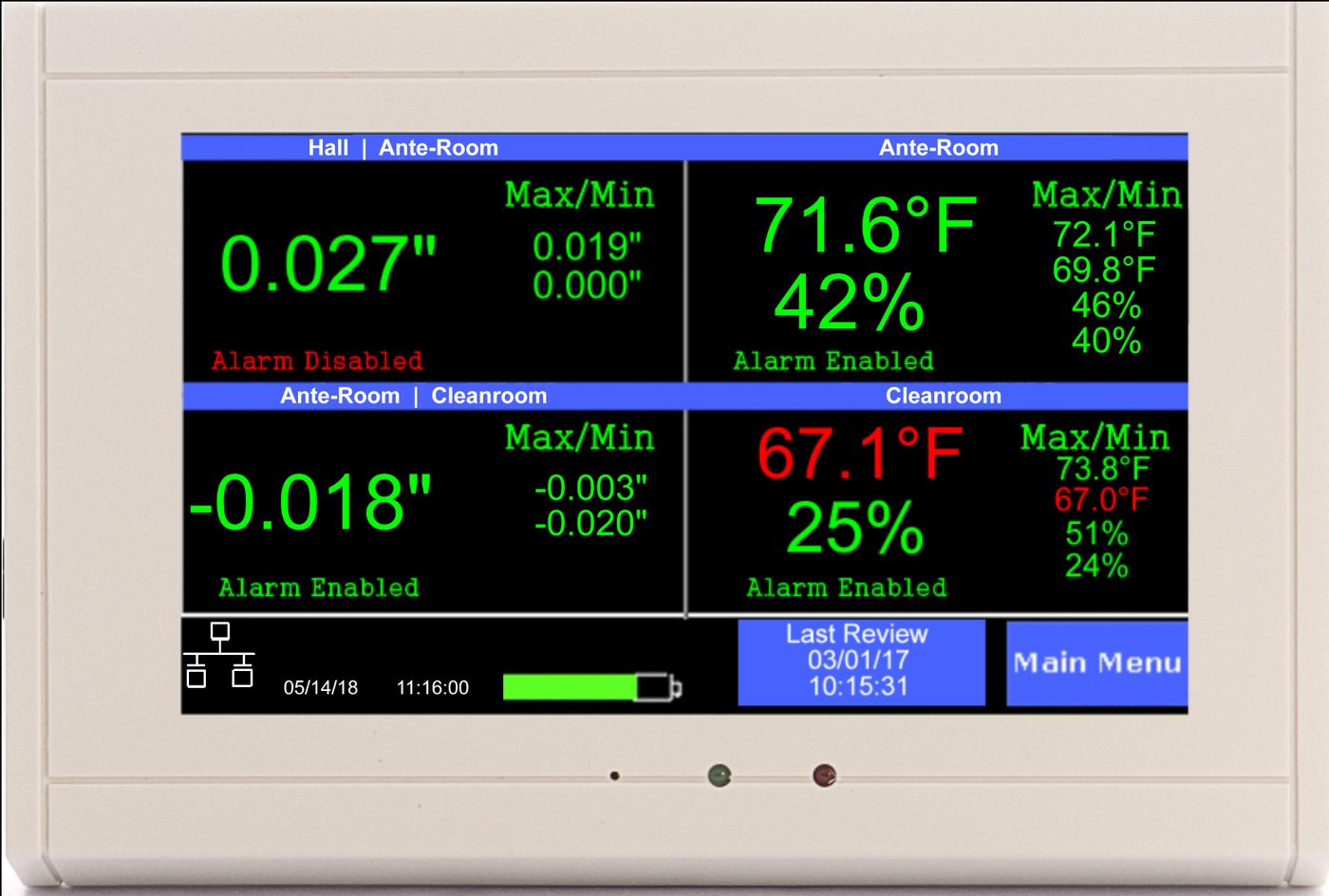

Differential pressure, temperature and RH for compounding and controlled spaces.
ExploreLaboratories and research
Continuous logging for incubators, cold storage and critical equipment.
ExploreFood safety
Continuous cold-chain logging for coolers, freezers and processing areas.
ExploreWarehousing
Temperature and humidity across large spaces and cold storage zones.
ExploreMuseums and archives
Stable temperature and humidity for collections, with exportable records.
ExploreComputer rooms
Temperature and humidity monitoring for server and IT spaces.
ExploreTissue and cryogenic storage
Ultra-low and cryogenic storage monitoring with high and low alarms.
ExplorePaperless chart recorder
Replace mechanical chart recorders with a display that charts and logs.
Explore
Simple Installation
Installed by whoever is on shift
No commissioning engineer, no cloud account, no IT project. Four steps, and the log starts the moment you set the clock.
-
Mount the display
Hook-and-loop on the wall, flush into drywall, a panel kit, or a sealed instrument case.
-

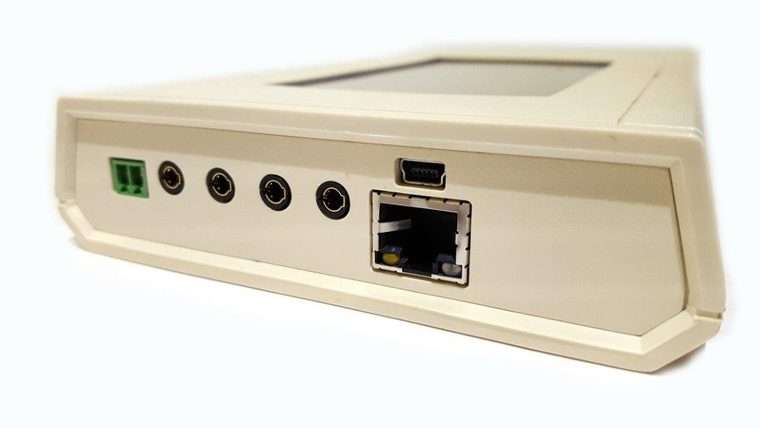

Place the sensors
Wired probes reach up to 200 ft with extensions. Wireless sensors go where cable cannot.
-
Set the safe range
A high limit, a low limit and a delay for each sensor, so door openings do not raise false alarms.
-
Add alerts if you want them
Install TView on any networked PC for automatic email alerts.
No Subscription
See Every Price
You own it. There is nothing to renew.
Most environmental monitoring is now sold as a subscription with per-sensor fees, a vendor-hosted database, and a login between you and the current temperature. The TV2 takes the opposite position, and publishes its prices.
TV2 with TView
- One hardware purchase, list price published
- Status readable on the wall, no login
- Logs stored on the instrument and on your own PC
- Alarms raised by the instrument itself
- Email alerts sent from your own PC
- TView software included, no seat charges
Typical cloud monitoring
- Recurring per-sensor or per-site fees
- Status behind an app or a browser session
- Data retained under the vendor's policy
- Alerting depends on the connection staying up
- Quote-driven pricing

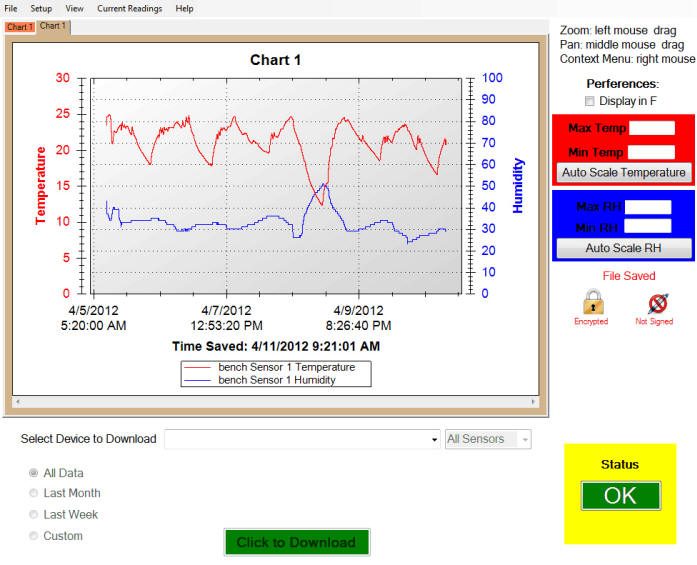

Free PC Software
TView turns the log into a record
The free Windows software finds every TV2 on your network, downloads the logged data automatically and charts it. Files are protected with 128-bit encryption, the basis for a 21 CFR Part 11 oriented workflow.
Export to Excel when you need to analyze. Keep the encrypted file for when you need proof of compliance.
About & Download TView Data Security & 21 CFR 11
Price It Yourself
Build a starting configuration
Pick how you want to connect and what you need to measure. This produces a parts list and a list-price estimate you can send straight to us.
